First-author research / Published 2026

Memristor-Based Read-Write Interface Design for Neural Networks

A first-author, behavioral-level pre-silicon study connecting VTEAM design rules, read-write separation, energy analysis, and neural-network evaluation.

Published in
Electronics 15(11), 2333
Role
First author
Authors
Zeen Fang, Mingyang Zhu, Hanbo Xu, and Lei Zhang
Read the paper View code and data

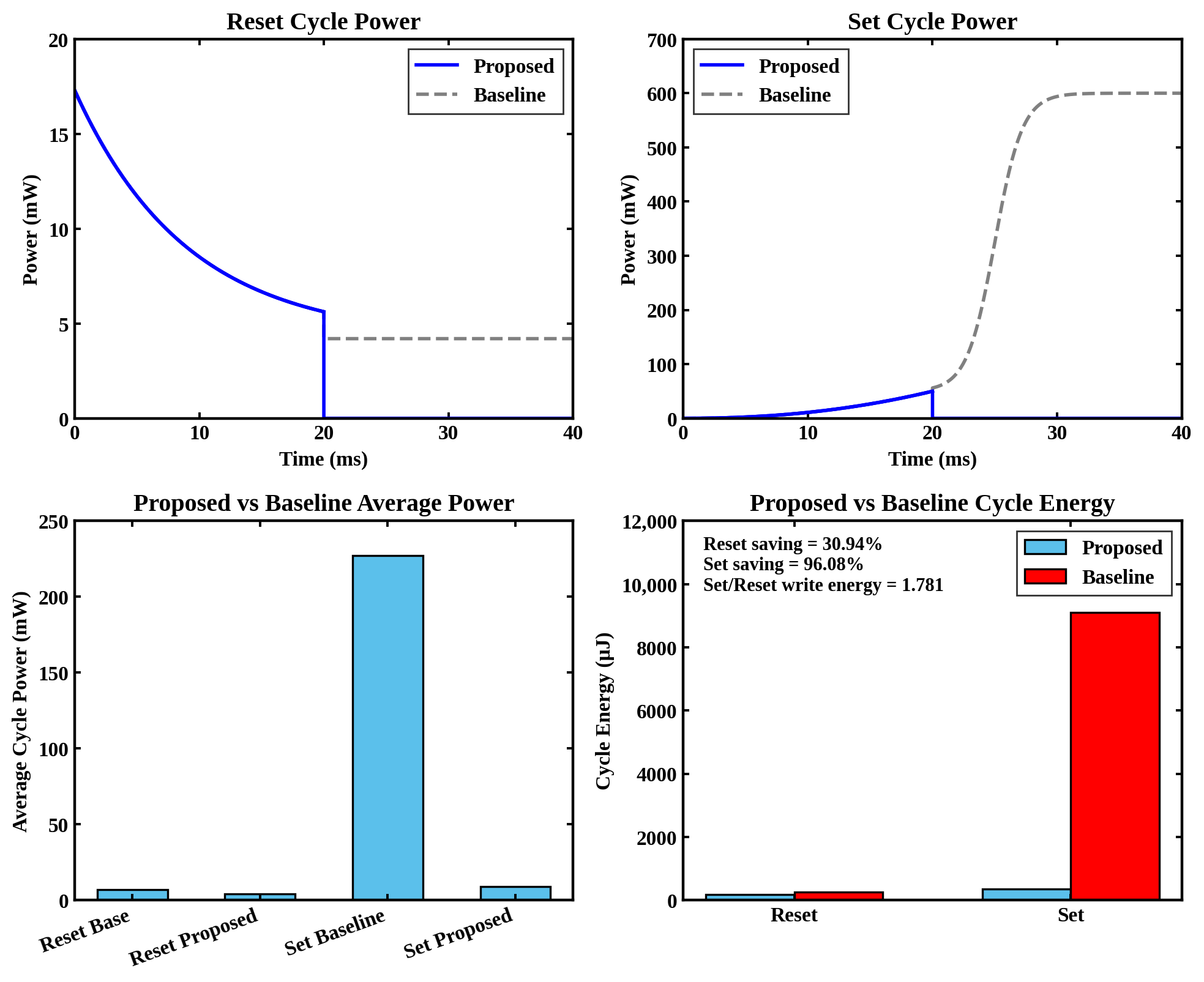

Four-panel comparison of Reset and Set power and energy for the separated and baseline memristor interfaces
Published figureFigure 15. Power and energy comparison between the proposed read-write separation interface and the no-separation baseline, showing 30.94% and 96.08% cycle-energy savings for Reset and Set, in close agreement with the analytical predictions of Equation (14). From Fang et al., Electronics 2026, 15, 2333. Licensed under CC BY 4.0.CC BY 4.0
Results at a glancePaper-level claims
96.08%

Set-cycle energy reduction

Reported against the defined no-separation behavioral baseline.

13.78x

Resistance window

Simulated HRS/LRS ratio: 8681.68 / 630.02 ohm.

90.6%

MNIST top-1 accuracy

Behavioral 784 x 10 evaluation; 1.2 points below software baseline.

01

Problem

Memristor interfaces must write resistance states efficiently while keeping read voltage from disturbing those states. Existing studies often tune these operating conditions empirically, leaving circuit designers without a compact rule that connects device kinetics, interface timing, energy, and application-level accuracy.

02

Approach

The study derives a closed-form safe operating window from the VTEAM state equation, then embeds the result in an Energy-Delay-Accuracy cost function. A two-phase over-threshold-write and sub-threshold-read strategy is paired with mutually exclusive PMOS/NMOS paths to separate programming and sensing.

The resulting parameter set is evaluated hierarchically in behavioral simulation: single-device switching, Monte Carlo variability, a 2 x 2 analog crossbar, and a 784 x 10 MNIST-style benchmark.

03

My contribution

I am the first author. The published CRediT statement attributes to me work spanning conceptualization, methodology, software, validation, formal analysis, investigation, data curation, original drafting, review and editing, visualization, and project administration, completed with my co-authors.

04

Reported results

Against the paper's explicitly defined no-separation baseline, the proposed timing strategy reports 30.94% Reset-cycle and 96.08% Set-cycle energy savings. It produces a simulated 13.78x resistance window, at most 0.008% cycle-to-cycle drift, and a 5.01% read-current coefficient of variation under the reported variability setup.

At the system level, the behavioral crossbar evaluation reports 90.6% MNIST top-1 accuracy, 1.2 percentage points below the software baseline. The paper reports agreement between the analytical predictions and behavioral results within 2% for the evaluated bounds.

05

Evidence boundary

The central evidence is behavioral/model-level and pre-silicon. The work offers analytical design rules and simulation-led validation; it does not claim a taped-out interface, fabricated memristor array, or measured silicon performance. Transistor and hardware non-idealities are explored or bounded as follow-up considerations rather than presented as post-silicon evidence.
